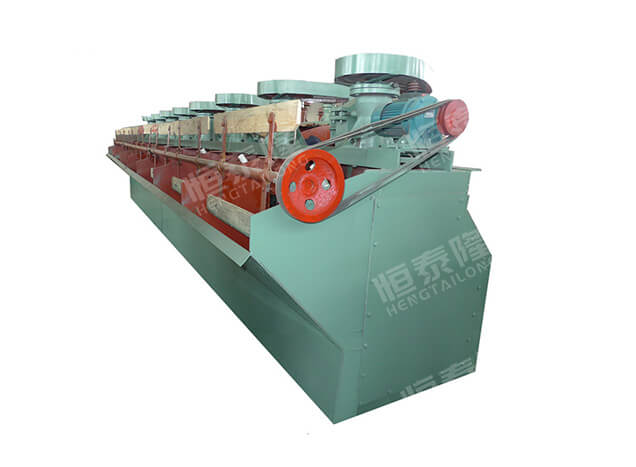

SF flotation machine

[Tank volume]: 0.15-20m³
[Production capacity]: 0.06-20m³/min
[Scope of application]: Metallurgical, Mining, chemical, building materials.
[Product introduction]:flotation machines suitable for separation of non-ferrous metals, ferrous metals, precious metals,non-metallic mineral and chemical raw materials, recovering use fulminates.

Send E-mail Inquire Now
SF flotation machine
SF flotation machine
SF flotation machine
SF flotation machine
SF flotation machine
SF flotation machine

Product Description

SF flotation machine has the advanced forward-type tank structure, double-blade wheel, with a diversion pipe and false bottom device. The slurry in the slot flows in an up and down double fixed direction cycle, which is good for the coarse-grained mineral flotation. It can absorb fresh air and slurry, no need foam pump, suitable for separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals.

Henan Hengtailong Machinery Co., Ltd.

Working Principle:

When gold flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Henan Hengtailong Machinery Co., Ltd.

Advantages:

Low energy consumption, 30-50% savable;
Solid particles can be fully suspended; high flotation index ;
Long service life of vulnerable parts ;
Mechanical agitation; non-automatic air and slurry suction; ladder is necessary during processing;
It can be combined with model XCF as a flotation cell set, working as direct flow cell.
Henan Hengtailong Machinery Co., Ltd.

Technical Parameters

Model

SF-0.15

SF-0.37

SF-1.2

SF-2.8

SF-4

SF-6

SF-8

SF-10

SF-16

SF-20

Tank Volume (m3)

0.15

0.37

1.2

2.8

4

6

8

10

16

20

Tank size

(mm)

0.5×0.5

×0.6

0.7×0.7

×0.75

1.1×1.1

×1.1

1.7×1.6

×1.15

1.85×2.05

×1.2

2.2×2.2

×1.3

2.2×2.2

×1.4

2.2×2.9

×1.7

2.9×3.8

×1.7

2.85×3.8

×2

Capacity

(m3/min)

0.06-0.18

0.2-0.4

0.6-1.2

1-3

2-4

3-6

4-8

5-10

5-15

5-20

Suction intensity(m3/m2/min)

0.5-1.0

0.8-1.0

0.8-1.0

1-1.2

1-1.2

0.9-1.0

0.9-1.0

0.9-1.0

0.9-1.0

0.9-1.0

Main

motor

Model

Y100L-6

Y90L-6

Y132M2-6

Y180L-8

Y200L-8

Y250M-8

Y250M-8

Y250M-8

Y250M-8

Y250M-8



Power

(kw)

1.5

1.5

5.5

11

15

30

30

30

30

30x2



Speed

(r/min)

940

1400

960

730

730

730

730

730

730

730

Impeller

Dia.

(mm)

200

296

450

550

650

700

760

760

760

760



Height

(mm)

57

80

104

124

131

186

186

186

186

186



Speed(r/min)

536

386

312

268

220

191

191

191

191

191



circle Speed(r/min)

5.6

6.0

7.35

7.7

7.3

7.5

7.5

7.5

7.5

7.5

Scraper Power

Model

Y80L-4

Y80L-4

Y90S-4

Y100L-6

Y100L-6

Y100L-6

Y100L-6

Y100L-6

Y100L-6

Y100L-6



Power(kw)

0.55

0.55

1.1

1.5

1.5

1.5

1.5

1.5

1.5

1.5

Scraper Speed

(r/min)

16

16

16

16

16

16

16

16

16

16

Reducer  Model

WHT80-41

WHT80-41

WXJ120-50

WXJ 120-31

WXJ 120-31

WXJ 120-31

WXJ 120-31

WXJ 120-31

WXJ 120-31

WXJ 120-31

weight(kg)

538/2

936/2

2745/2

4676/2

5165/1

3000/1

4129/1

4686/1

8230/1

8530/1
